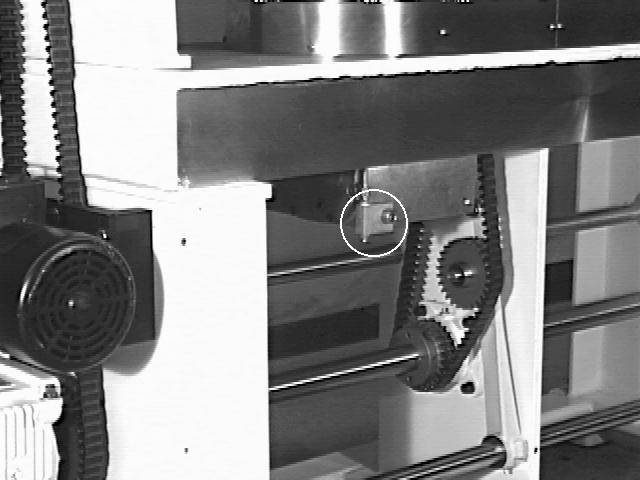

This view highlights the gear chain connecting the indexer to the lower cam shaft. The tensioner sprocket revolves on a sealed double row standard pivot bearing. (cont...)
The small attachment to the indexer housing, (circled), is a remote grease access point for the indexer main output bearing. A remote indexer oil access is provided on the opposite side, (not shown).
