Less than 3000 hour use; base, indexer and drive have been checked out for reliability. System guaranteed for one year or 5,000 hours operation (whichever occurs first).  With above reducer and pulley arrangement, the machine rate is 24, (or 34.5), per minute.

Features and Dimensions

• Height to table top, (with pads in place): 30 1/2"
• Table top, (blanchard ground HRS): 36" wide X 48" long
• Table top thickness: >1.40" (1.50" before grinding)
• Over all dimensions: 38" wide X 58" long (including drive package)
• Cam shaft diameter: 1.625" (AISI 1045 TGP); 3/8 key
• Lever shafts diameter: 1.250" (AISI 1045 TGP)
• Shaft arrangement: 5.000" X 5.000", (sized for R. D. Dane CL-5 cam levers with SPC-C5 and BC-C5 cams
• Shaft C-C below table top: 13.00"
• Indexer: Ferguson FD200-6-120, 6 stop, 120 degree cross-over **
• Reducer: Textron SHO-25 60:1, 1.437" adapter, (dual input shaft with hand wheel)**
• Motor: Baldor 1HP, 208VAC 3 phase, 1725 RPM with brake **
• Belt: 1/2 pitch X 1", 5:6 ratio, (or can flip pulleys for 6:5) **
• Overall reduction is 1:72; (or can flip pulleys for 1:50) **
• Morse 1/2 inch (404) gear chain from cam shaft to indexer
• Adjustable gear chain timing sprocket, (30 degree range)
• Gear chain is guarded above table top.
• Setup is for a clockwise indexer dial rotation looking down at dial. **
• Indexer is not at the center of the table. (2.5" off center, toward drive side)**
• Unisorb LR1200 Pads included
• Precision machined 1" thick X 17" dia. aluminum dial included, (detail drawing available)**
• Solid model and detail drawings of machine base and of existing holes in table top included. (Can be plugged as needed for additional cost)

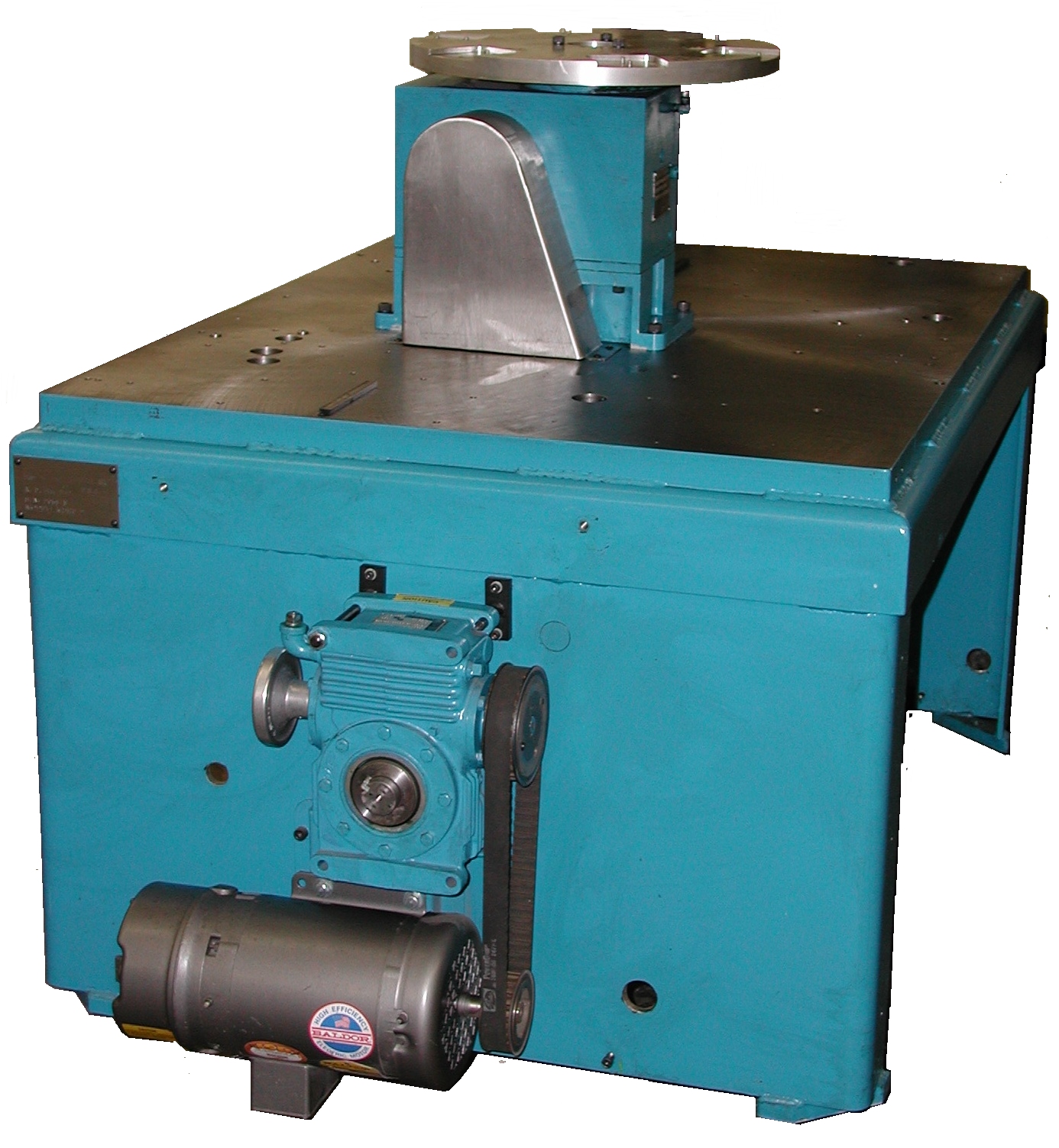

(Click HERE for higher resolution image.)

VIDEO:

• Overall Machine
• Upper Index Driven Sprocket (adjustable)
• Lower Index Drive Sprocket and Cam Shaft
• Motor and Gear Reducer
