NOTES:
-

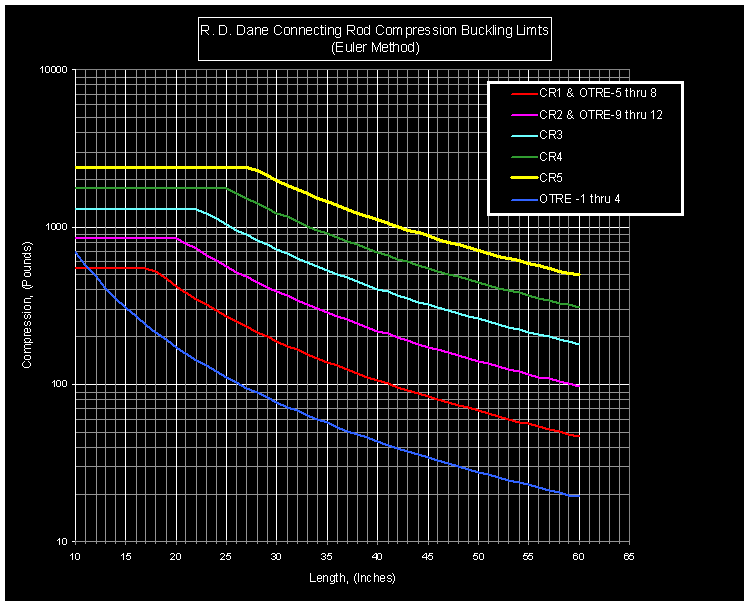

Data depicted below is theoretical and for preliminary evaluation and comparative
selection purposes only. R. D. Dane is not responsible for failure
of end-user to apply thorough engineering safety evaluation practices prior
to service.
-
Data is for an ideal static condition. Vibrational and gravitational effects
are not considered and no safety factor has been applied.
-
OTRC maximum static compressive load is the maximum spring force as listed
on the catalog page.
-
OTRC maximum static tensile load, (all), is 850 pounds.
-
OTRE maximum static tensile load is the maximum spring force as listed
on the catalog page.
